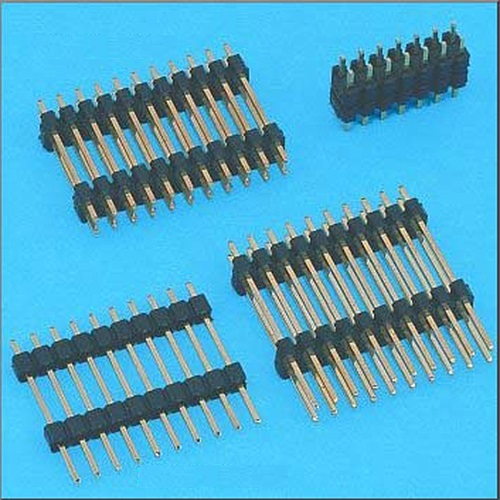

Our Products Pin Header Connector 2.00mm pitch Pin Header W201D 2.0mm (0.079")Pin Header Double Plastic Base - DIP type W201D Series ※ Poles: 01-40 ※ Insulator material: PBT Black ※ Contact material: Brass Gold Specifications ※ Current rating: 1A ※ Dielectric withstanding: AC 500V ※ Temperature range: -25℃ ~ +85℃ ※ Insulation resistance: 1,000MΩ min. ※ Unspecified tolerance: ±0.25 W201D Order / Inquiry Information Please select Items below and click See Catelog for Inquiry. Series No. W201D No. Of Circuit Contact Plated G=Gold Flash A/B/C Special Dimension AXXBXXCXX See Catalog Please write down your comment on this product, and click Add to Inquiry List for Inquiry Add to Inquiry List Review Inquiry List Back
