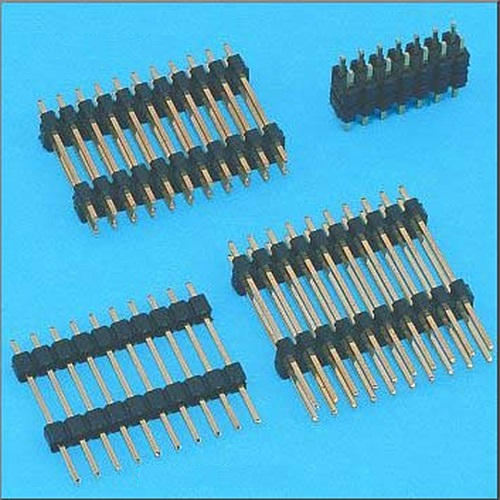

W202D 2.0x2.0mm(0.079" x 0.079")Double Plastic Base Header - DIP type
W202D Series
※ Poles: 02-80
※ Material: Insulator: PBT Black
※ Contact material: Brass Gold
Specifications
※ Current rating: 1A
※ Dielectric withstanding: AC 500V
※ Temperature range: -25℃ ~ +85℃
※ Insulation resistance: 1,000MΩ min.
※ Unspecified tolerance: ±0.25
